SPL Side Panel Line
Processing kitchen cabinets
The machine concept SPL-Side Panel Line is especially designed for the kitchen cabinet manufacturing industry for processing traditional Face Frame and/or Euro style/frameless cabinets. The high output line is laid out for processing approx. 2,000 traditional face frame cabinets per day. Optionally, the SPL can be equipped with additional working stations to be able to process Euro style, frameless cabinets as well.
The processing line offers numerous customization options. Additional processing steps can also be integrated as an option. We therefore tailor the machines to your specific requirements. The machine concept can also be integrated into existing or new production systems.
Machine concept

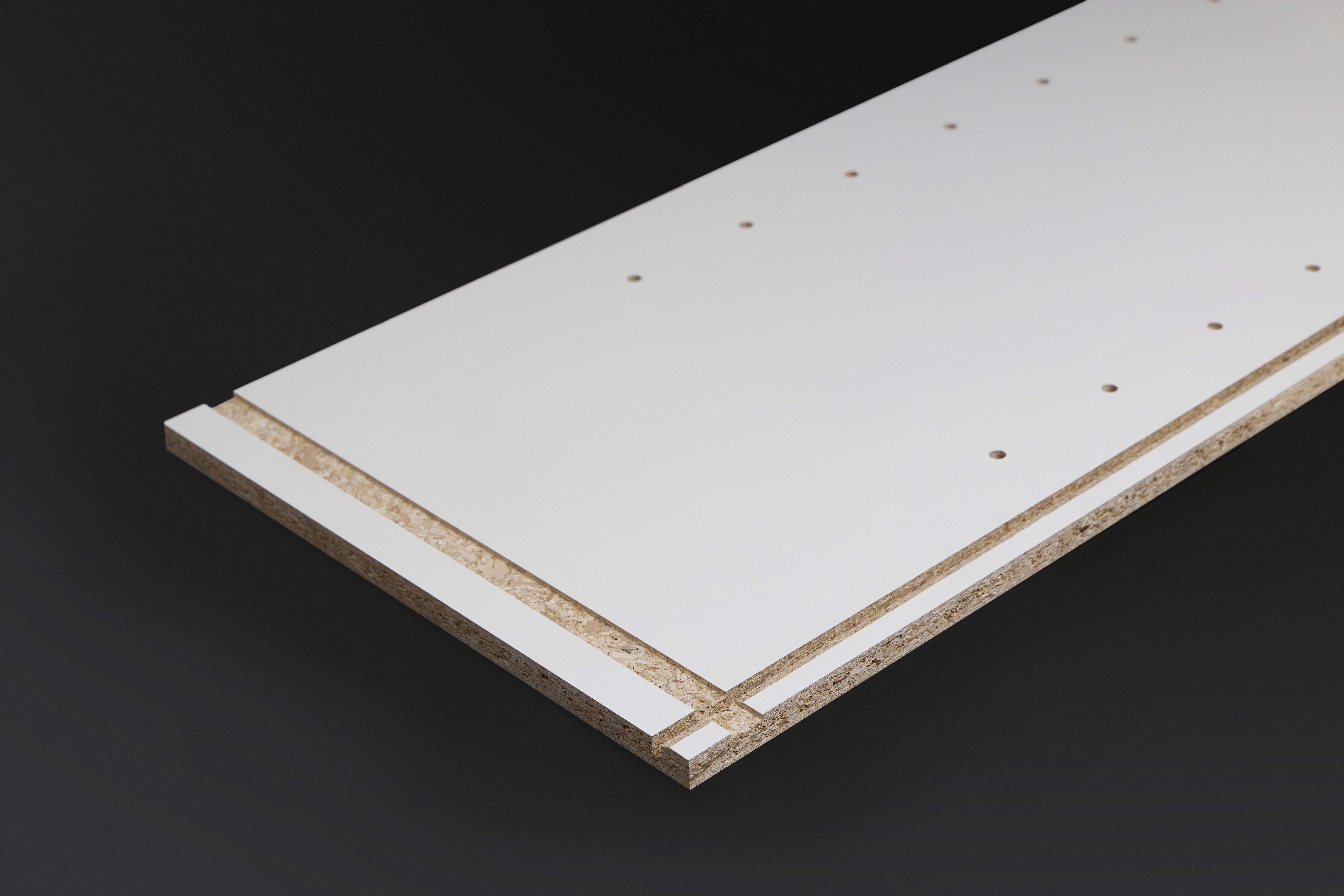

Station 1: Drilling of shelve holes

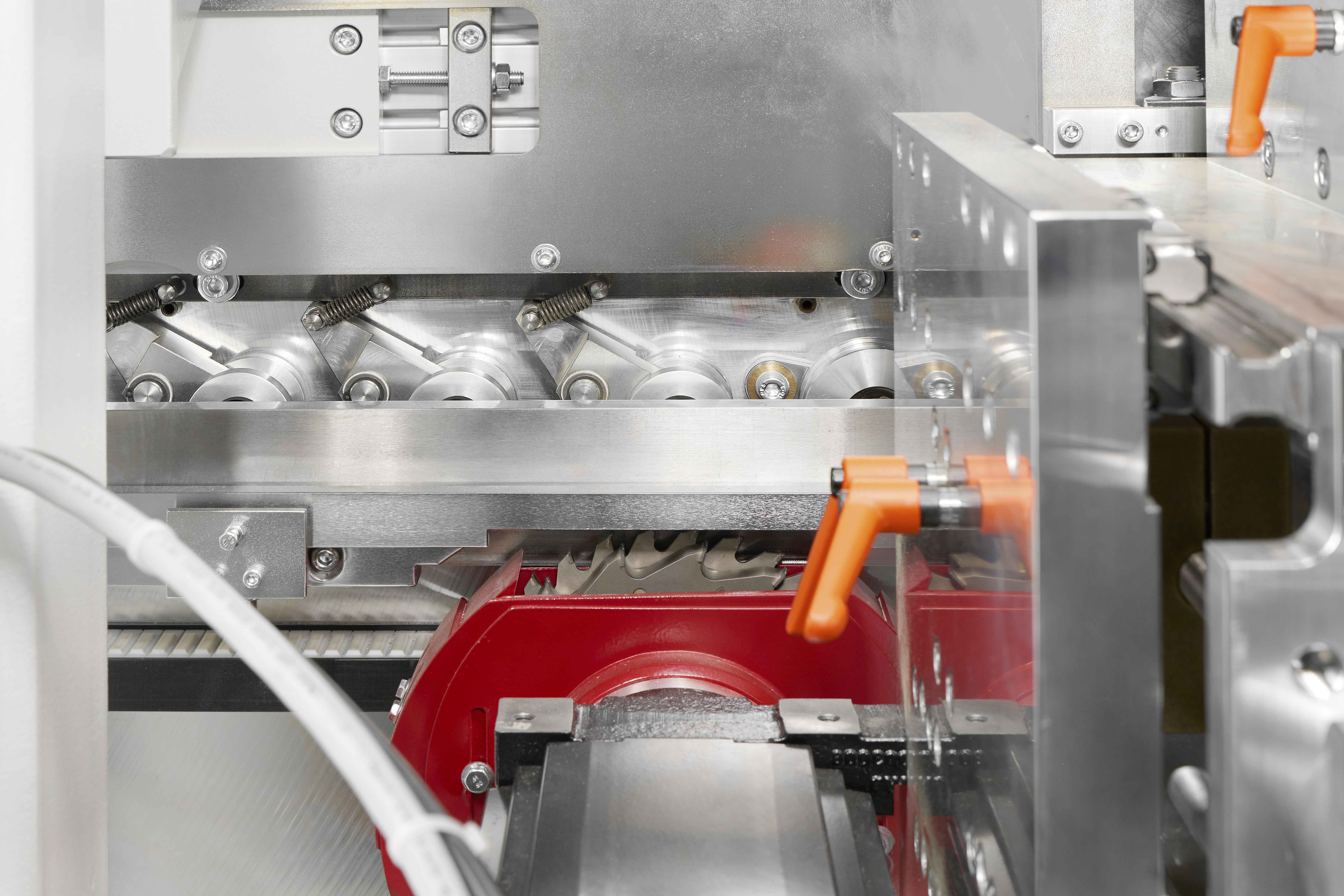

Station 2: Top and bottom grooving

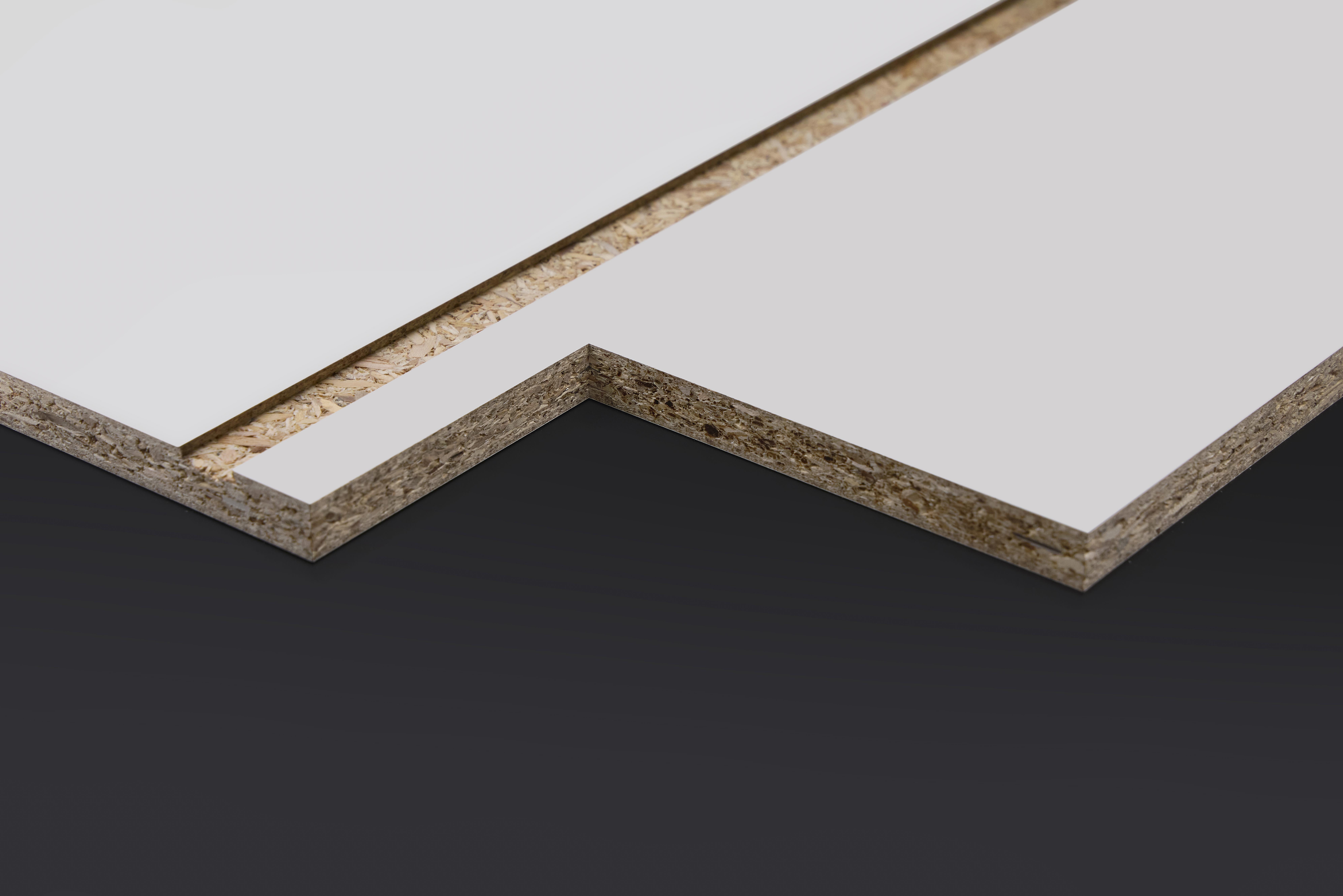

Station 3: Grooving for back panel

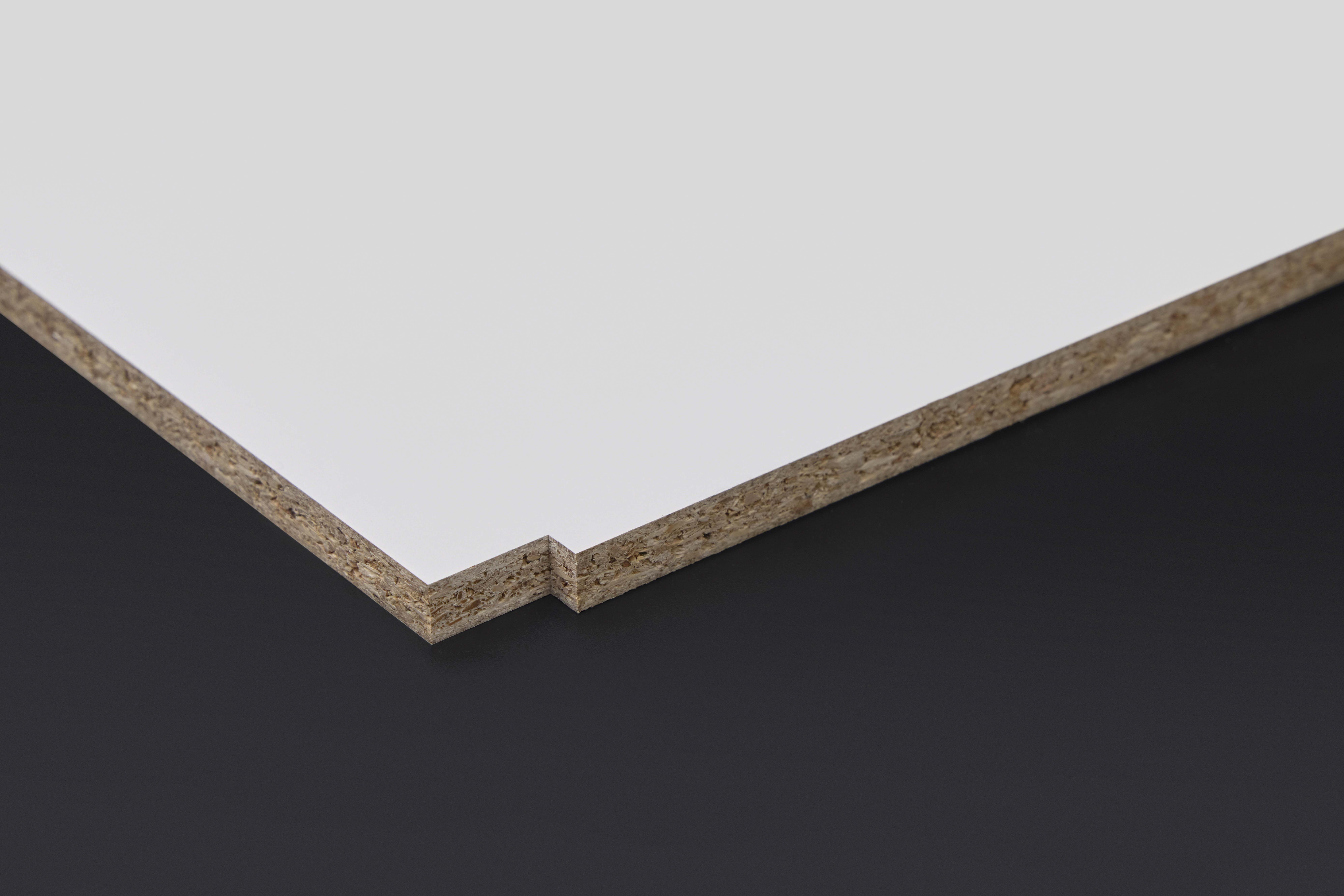

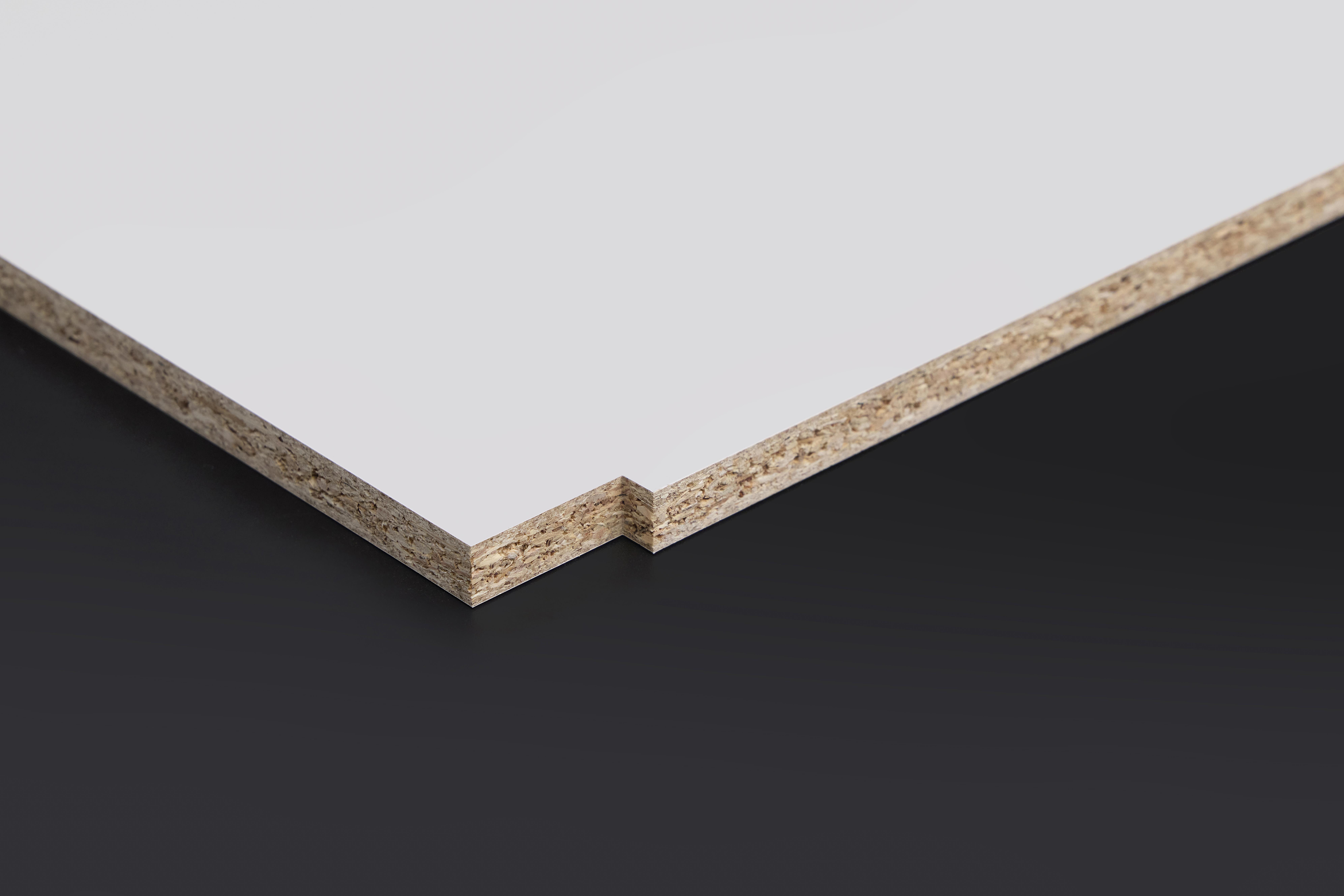

Station 4: Toe kick notching
Stock dimensions
Stock length: 304,8 mm (12") - 1100 mm (43")
Stock width: 292 mm (11,5") - 600 mm (23,5")
Stock thickness: 12.7mm (1/2") - 19 mm (3/4")
- Small foot print
- Hight rate of production
- Ease of set up
- Bespoke equipment
- High precision due to sturdy machine design and brand components
Standard - Traditional Face Frame
- Machine 1: Vertical Drilling from below
- Machine 2: Dado processing

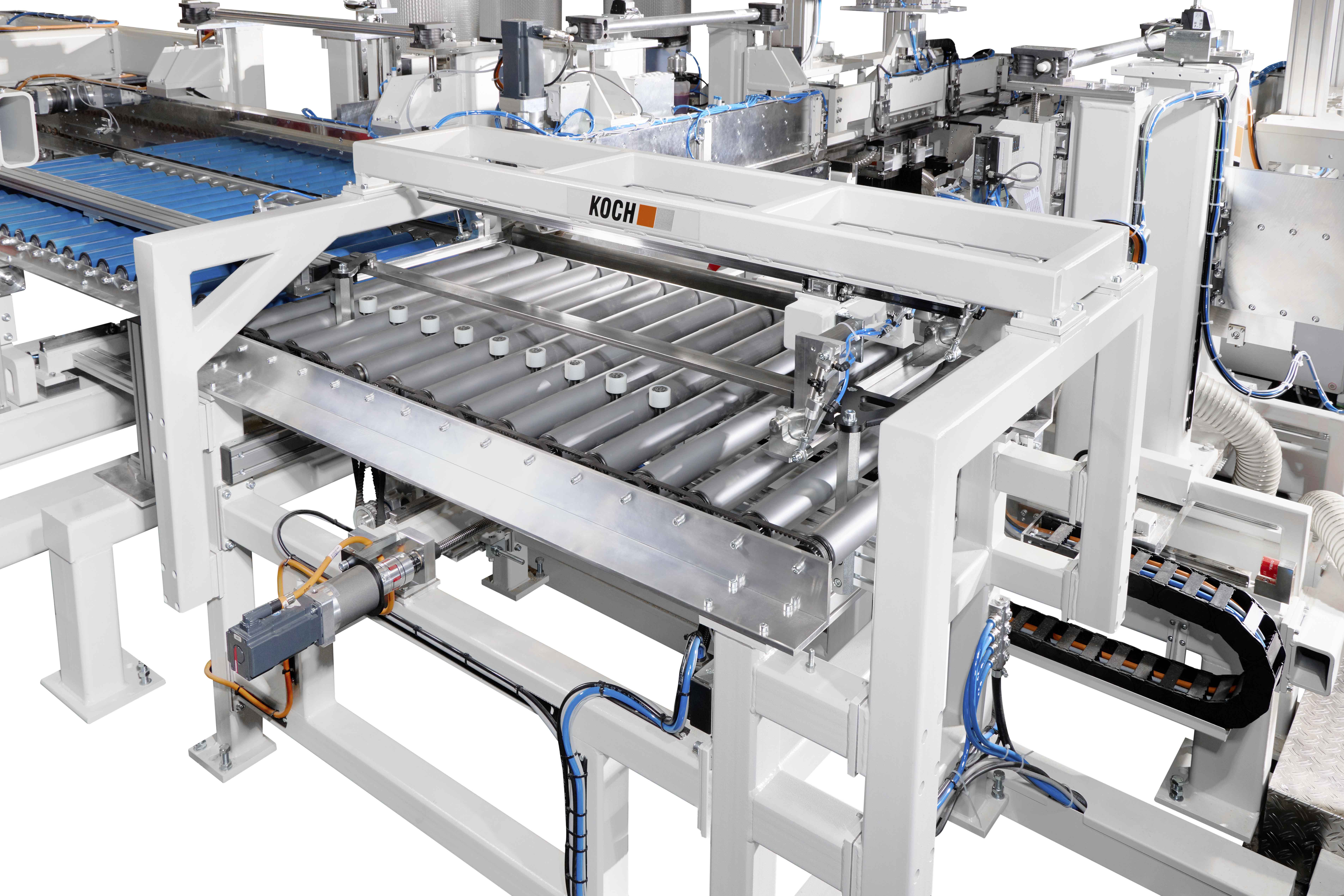

- Machine 3: Angular transfer
- Machine 4: Backpanel grooving
- Machine 5: Notching (for double piece processing)
Combo - Traditional Face Frame + Euro style/frameless
- Machine 1: Edge drilling and pocket routing
- Machine 2: Vertical drilling from below
- Machine 3: Dado processing
- Machine 4: Angular transfer
- Machine 5: Backpanel grooving
- Machine 6: Notching l/h & r/h
- Machine 7: Conveyor belt
- Machine 8: Center drilling
