Machines

VK015

Through-feed case clamp

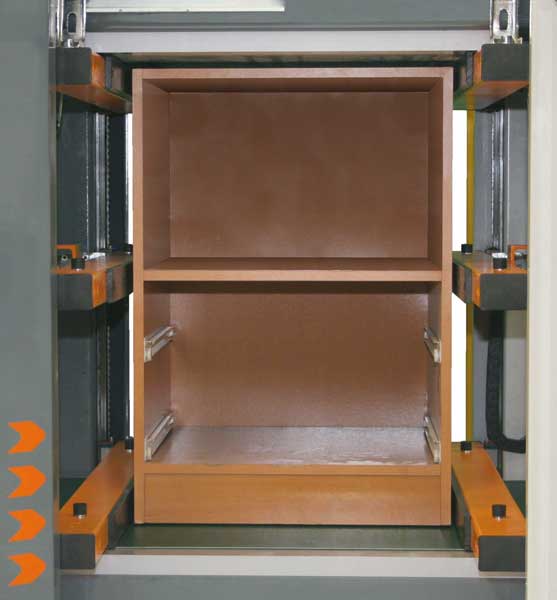

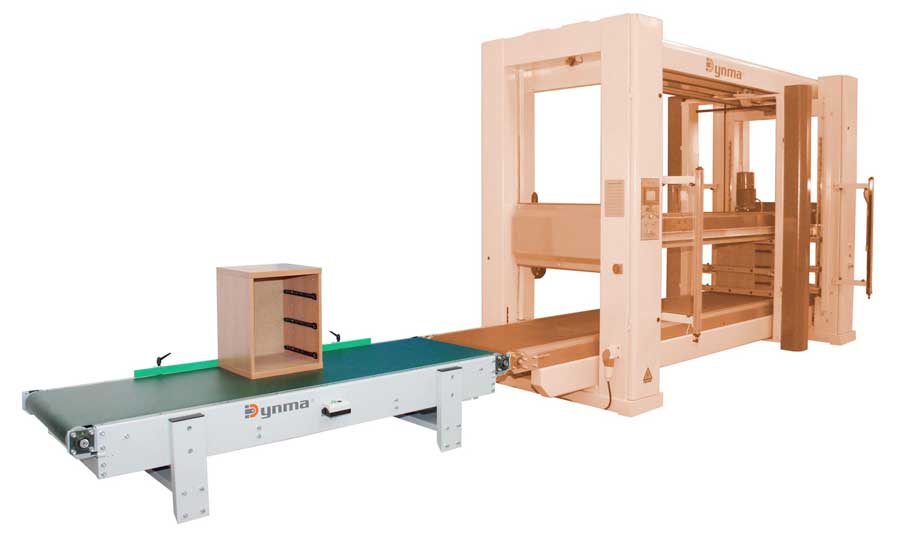

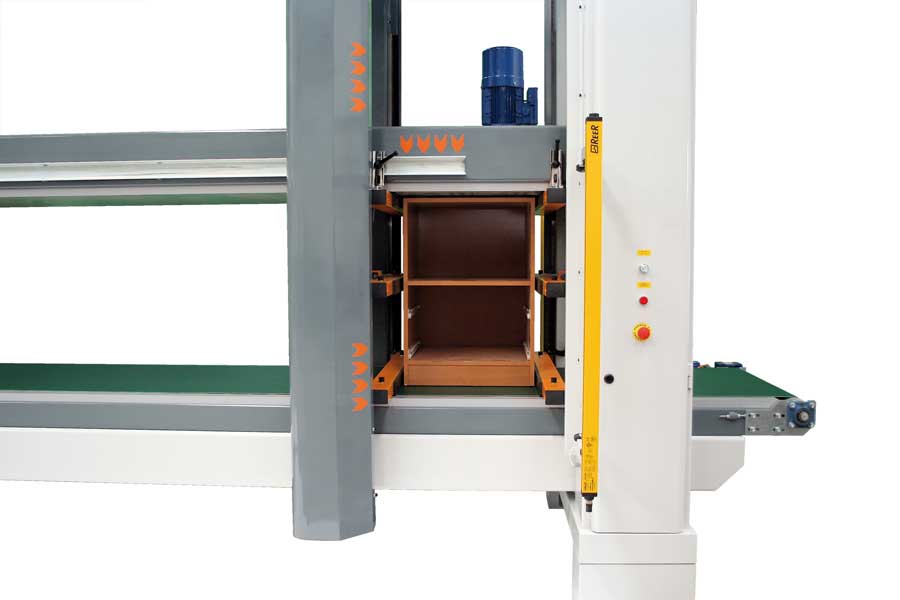

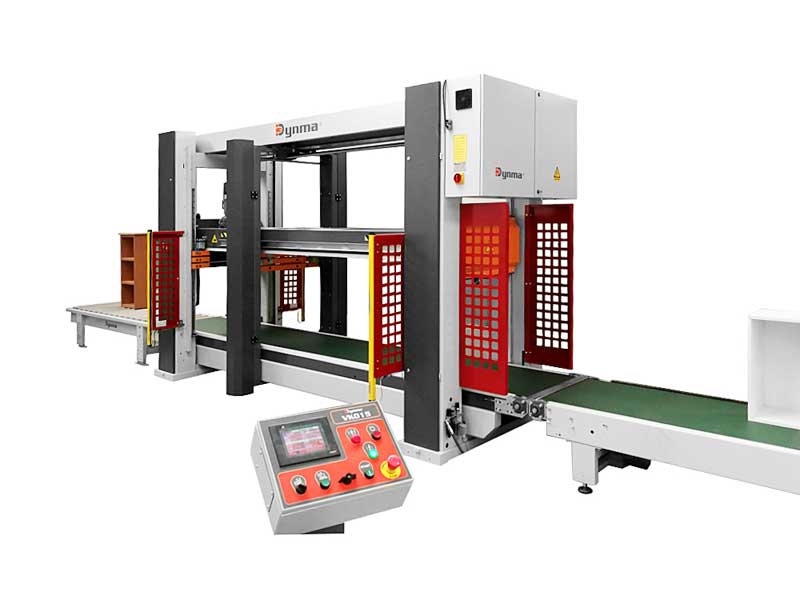

The electro-mechanic case clamp VK015 allows a fast assembly of cabinets without having to make pre-adjustments on the clamp. The strong clamping plates of the VK015 enable an all-over clamping of the cases to achieve the highest quality results. A clamping power of up to 2,000 kg can be generated in the press. Furthermore, the case clamp can be fully-automatically adjusted, wherefore it is ideally suited for integration in a complete production line for serial production of carcass furniture.

The press VK015 is also available in an ECO version, which offers you all advantages of a well-equipped case clamp, adapted to the production of small and medium volumes.

  • High flexibility due to freely positionable horizontal press elements
  • The clamp is suited for mass production, smaller series as well as for batch size one production
  • Highly adaptable to your production:can be easily integrated into your production line
  • Intuitive operation via touch screen display
  • High safety standards due to CE-conformity e.g. 2-hand-operation, security fence etc.
  • Maximum precision:Sturdy design, linear guides and ball screws
  • Minimum ste-up time due to automatic workpiece measurement

  • 2 clamping platforms
  • Touch screen control panel
  • Conveyor belt with adjustable speed
  • Integrated pre-assembly area

  • Special clamping unit for furniture with intermediate support
  • Automatic height adjustment of the lateral and intermediate clamping area
  • Upper lateral clamping area with an automatic lowering device
  • Conveyor belt to pre-assembly area
