MULTIFLEX
Flexible drilling and dowel processing for medium quantities

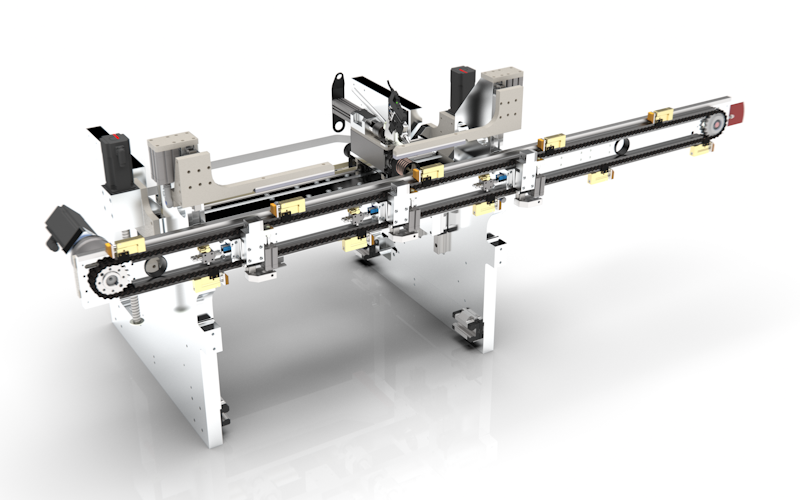

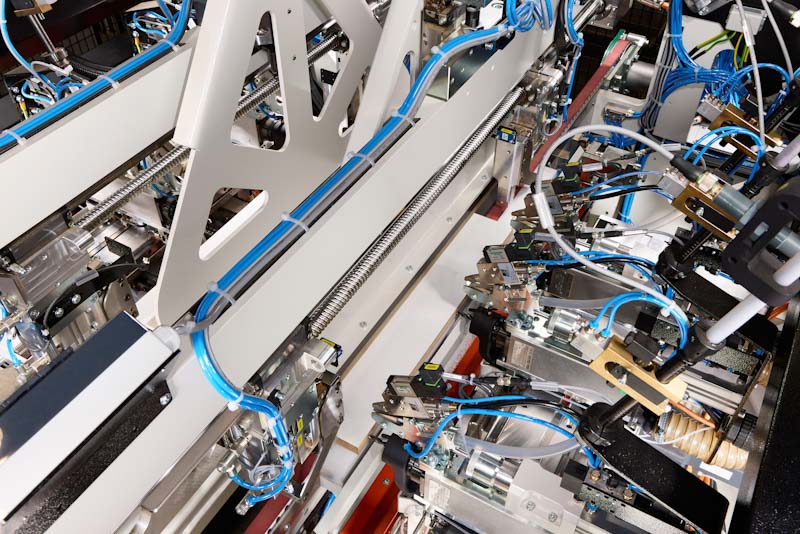

The newly developed MULTIFLEX machine model is designed for flexible drilling and dowel processing of small to medium quantities. It still achieves a high level of productivity and can process up to 18 parts per minute, depending on the drilling pattern. A new feature of the concept is that the individual machining units, drilling spindle, glue valve and dowelling tool, have been combined into one unit and are fixed in position during machining. For processing special grids the units move along the workpiece point-to-point. If the processing units are in a fixed position, they can be adjusted by motor according to a freely selectable pitch.

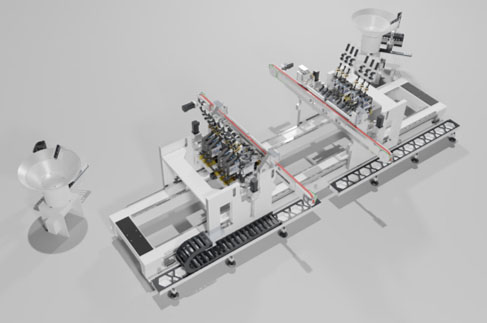

The MULTIFLEX is primarily designed for drilling and dowel processing of carcase bases and narrow parts such as drawers and mouldings. The throughfeed machine can either be integrated into production lines or, as will be shown at LIGNA, function as a work cell with automatic loading and unloading. Here too, the robot connection is controlled by Rotte.
- More flexibility: Motorised adjustment of the processing units for optimisedset-up and flexible positioning of the units to one another and gentle workpiece transport, also for the transfer of smaller parts
- Optimised ergonomic working:Dowel pots positioned at ground level for better working ergonomics and possibility to refill outside the safety area
- Setup-free working: Automatic adjustment of the processing units, depending on the production programme
- Simple operation and maintenance: Simple, self-explanatory machine operation thanks to the latest KOCH machine control and user interface
- Stock clamping system with integrated workpiece stops
- Stock centre support with automatic adjustment for processing workpieces from 500 mm in length
- NC axes for width adjustment and processing supports

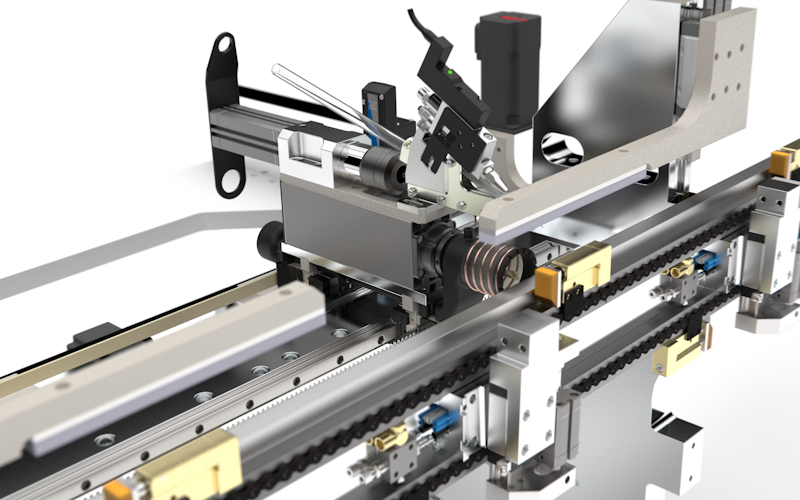

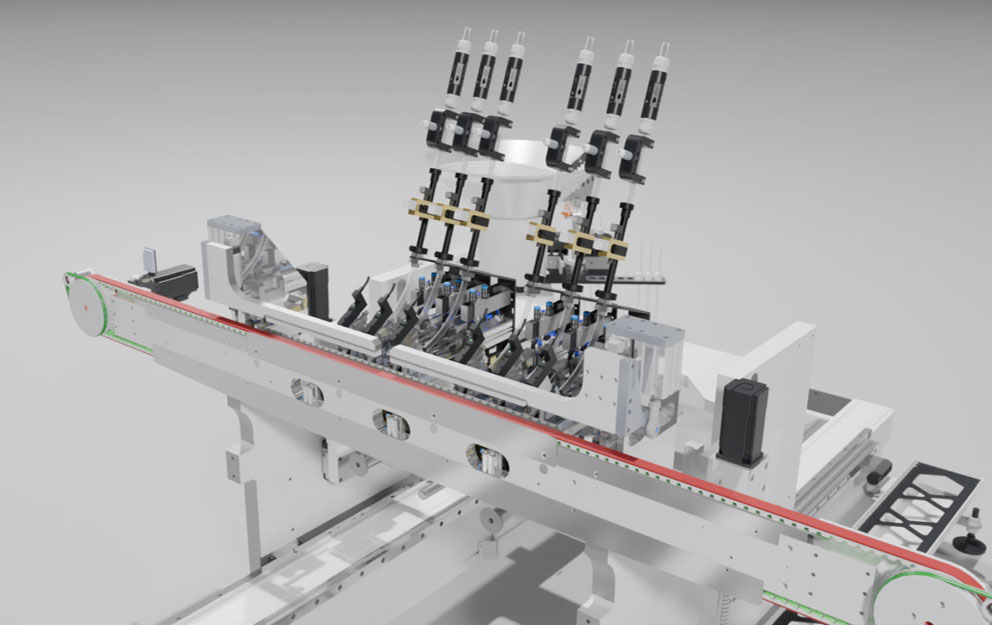

- One MULTIFLEX unit per side with drilling and dowelling function with integrated drill hole blow-out and extraction system
- Dowel feed with sensor-based dowel detection (patent pending)
- Dowel hopper positioned at ground level for better working ergonomics
- Gentle workpiece belt transport, particularly suitable for narrow parts
- With central suction channel
- 18:1 high-pressure glue pump
- Electronic glue control ELC (patent granted)
- Central lubrication of the working units
- A/C unit
- UPS low voltage supply
Options for machine loading
- Reversing workpiece transport
- Double-deck belt conveyor
- Loading cell with 6-axis robot
- Magazine (up to 300 mm workpiece width)
- Belt infeed
Other options
- One additional MULTIFLEX unit per side with drilling and dowelling function (max. 6 per side)
- 1 vertical drill spindle per side from above (at the edge)
- Vertical drilling from above into the surface (with overhead beam)
- Vertical drilling from below
- Hybrid drilling station
- Insertion unit
- PEANUT connector insertion possible
- Machine outlet: Stacking magazine at the outlet or motorized stock outfeed belt
