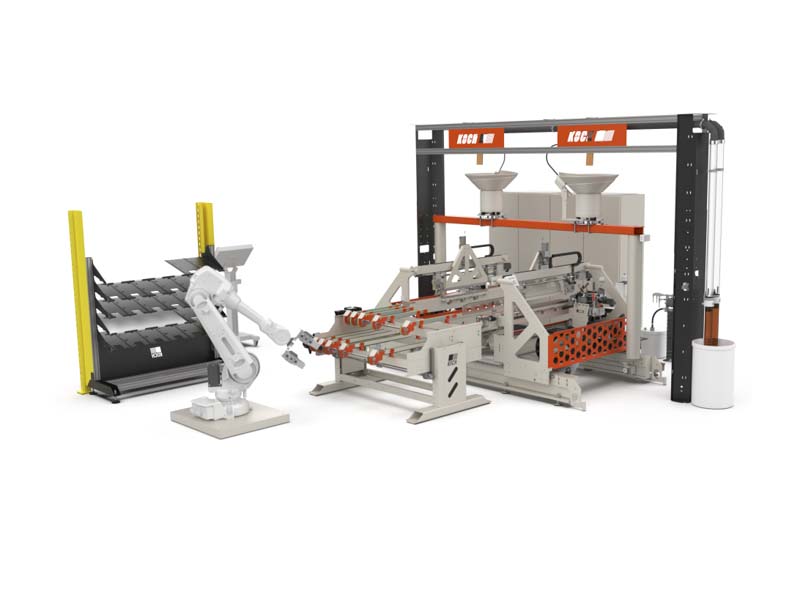

UNIFLEX base.line

Drilling and dowel insertion machine with PTP function for processing small and cabinet parts

The through-feed drilling machine UNIFLEX base.line is ideally suited for double-sided drilling and doweling for batch size 1 as well as small volume production.

Drilling and dowel patterns are stored in the program, so even workpieces of varying width can be processed one after another with minimal stop and set-up times. Each workpiece is processed on a point-to-point basis utilizing of NC-control, from fast transport and precise positioning through to efficient drilling and dowel insertion. The UNIFLEX can be used as a stand-alone machine or integrated into a complete production line.

  • High flexibility for all drilling and doweling patterns due to PTP function
  • Workpieces of varying width can be processed one after another
  • Minimum stop and set-up times
  • Fast drilling operations due to strong drilling systems
  • Clean drill holes and precise positioning of dowels
  • High precision due to solid and robust design
  • Maximum availability due to brand-name and quality components

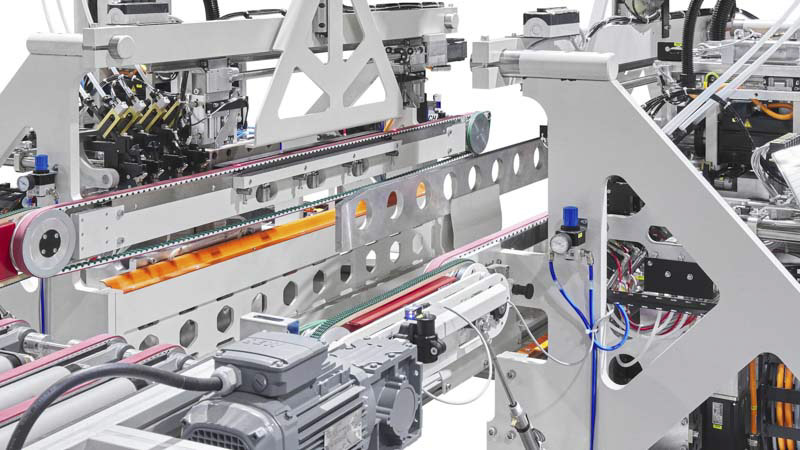

  • Stock infeed belt

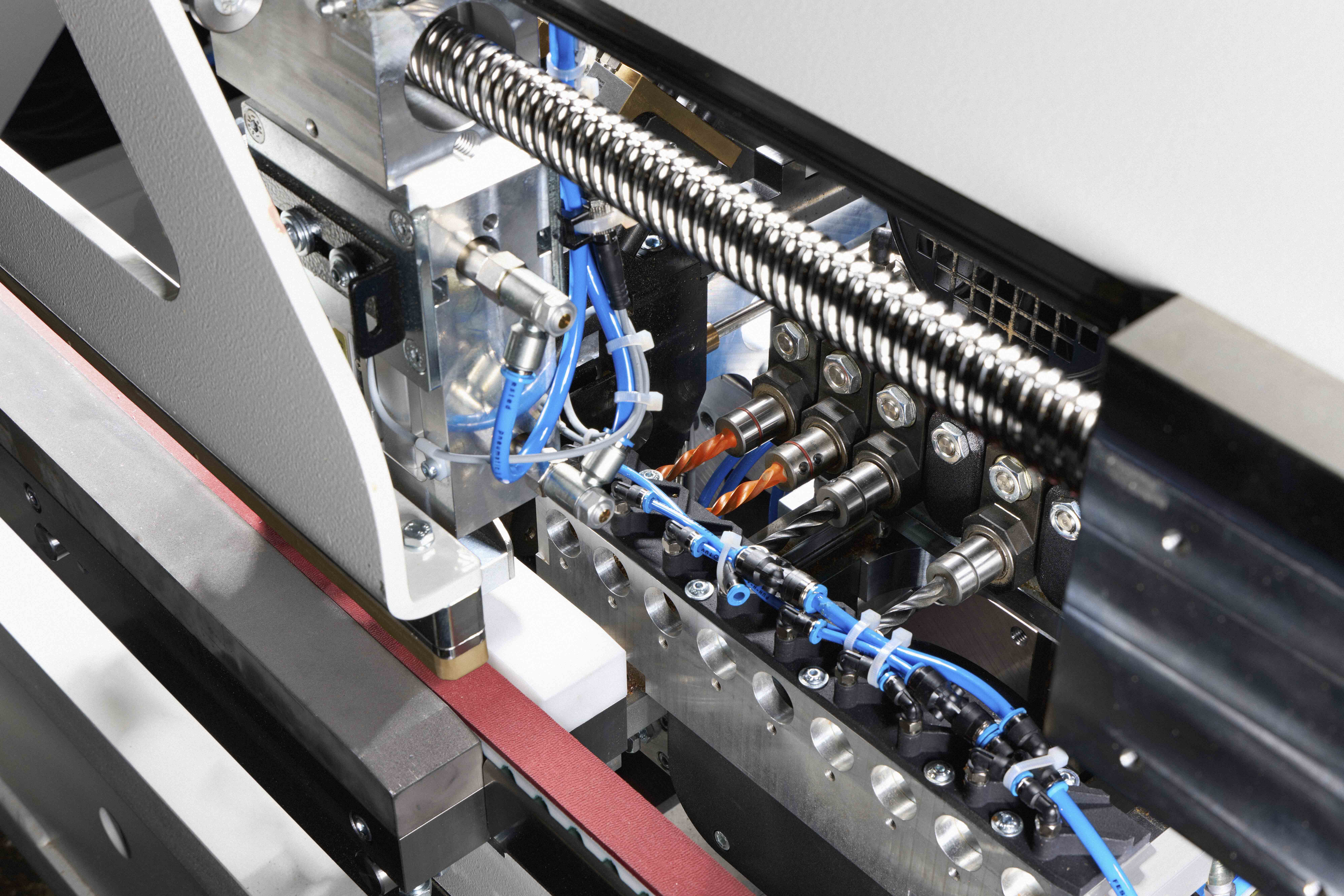

  • Horizontal drilling unit, with a variable amount of individually controlled drilling spindles

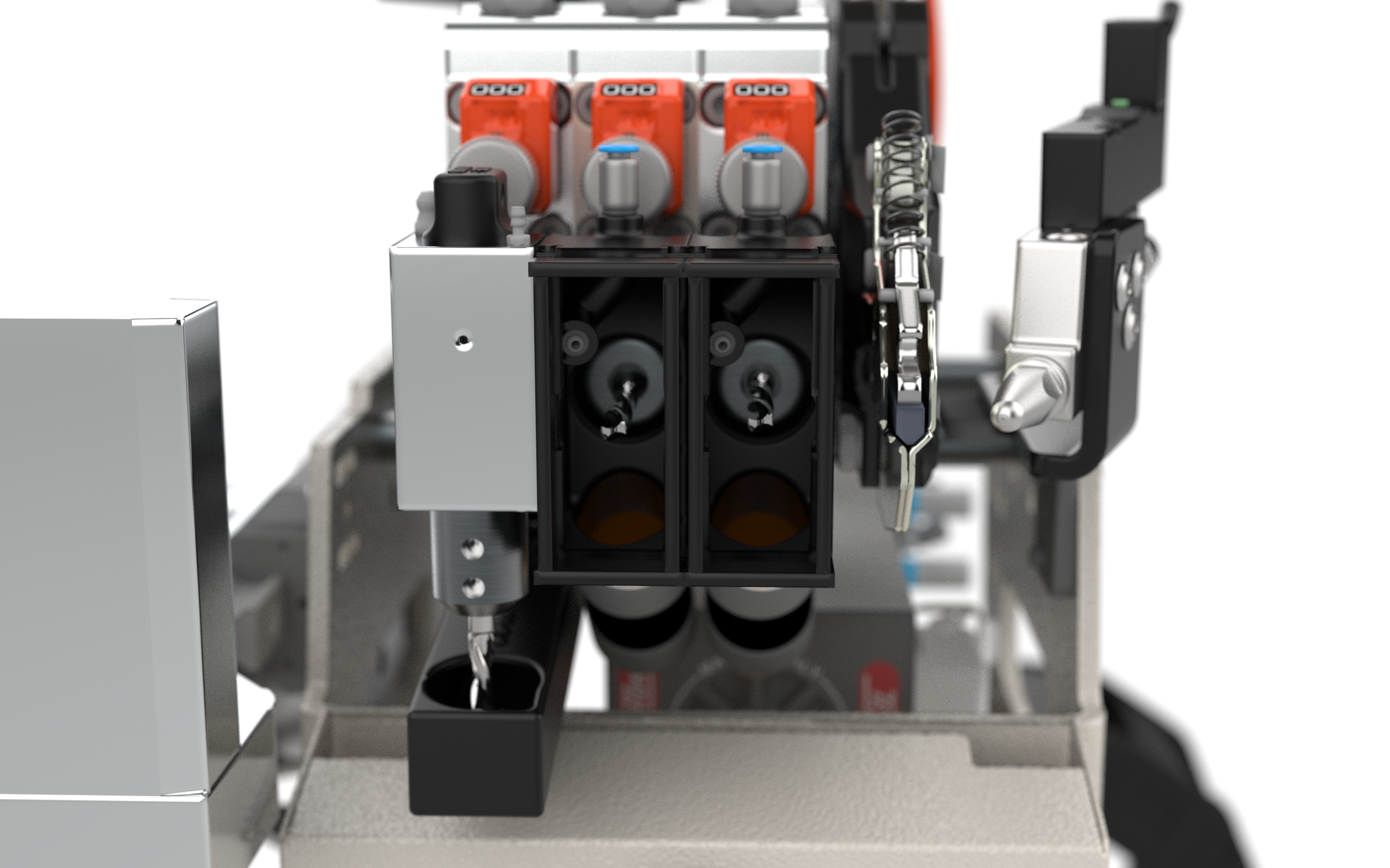

  • Dowel driving unit, with variable amount of dowel tools
  • ELC – Electronic Glue Control

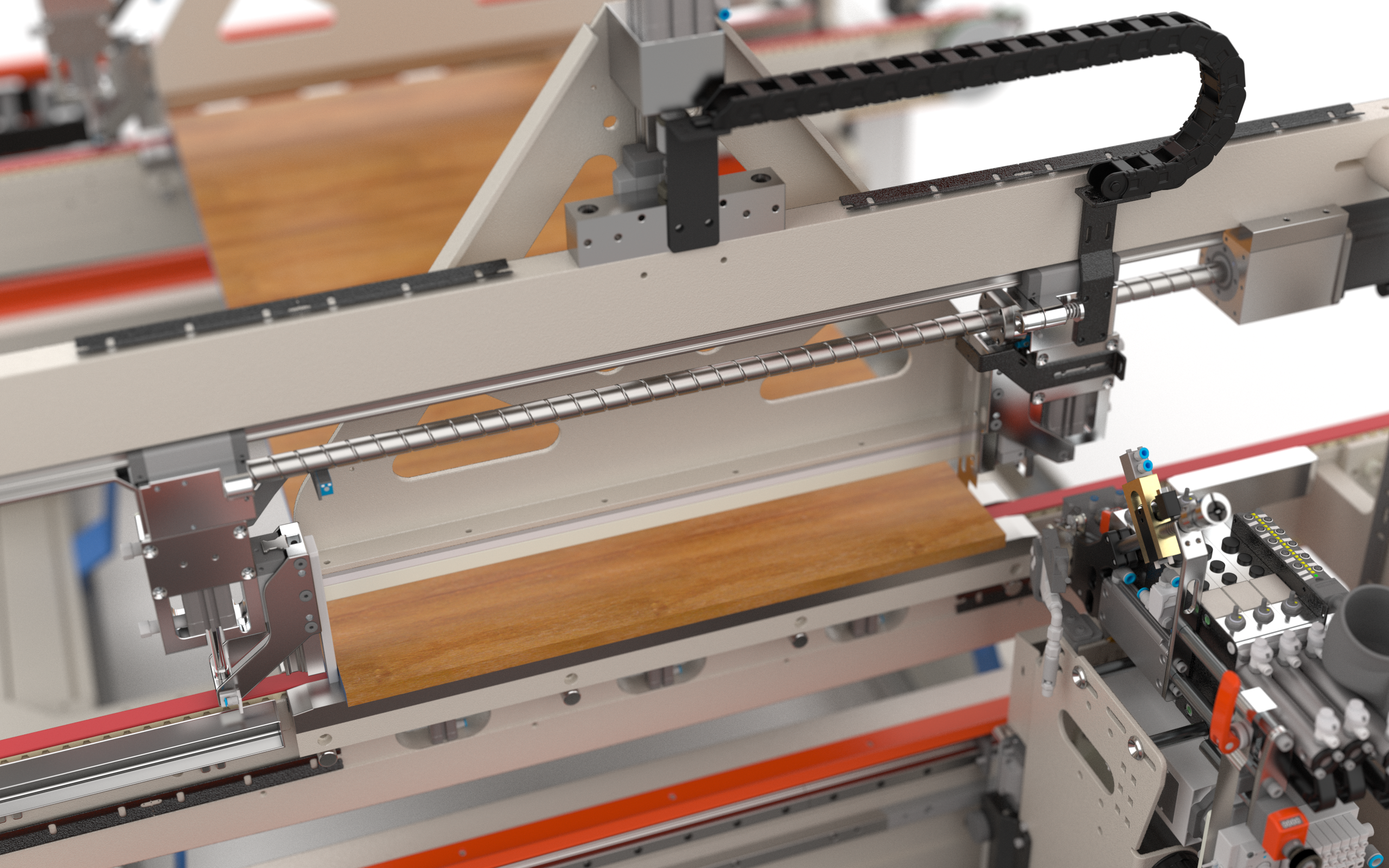

  • NC positioning of width adjustment

  • Vertical drilling in the border area for dowel and fitting insertion
  • NC positioning of height adjustment
  • Workpiece return feed for one-man operation
  • Center stock support
