UNIFLEX with robot feeding
Flexible drilling and doweling for small batch sizes

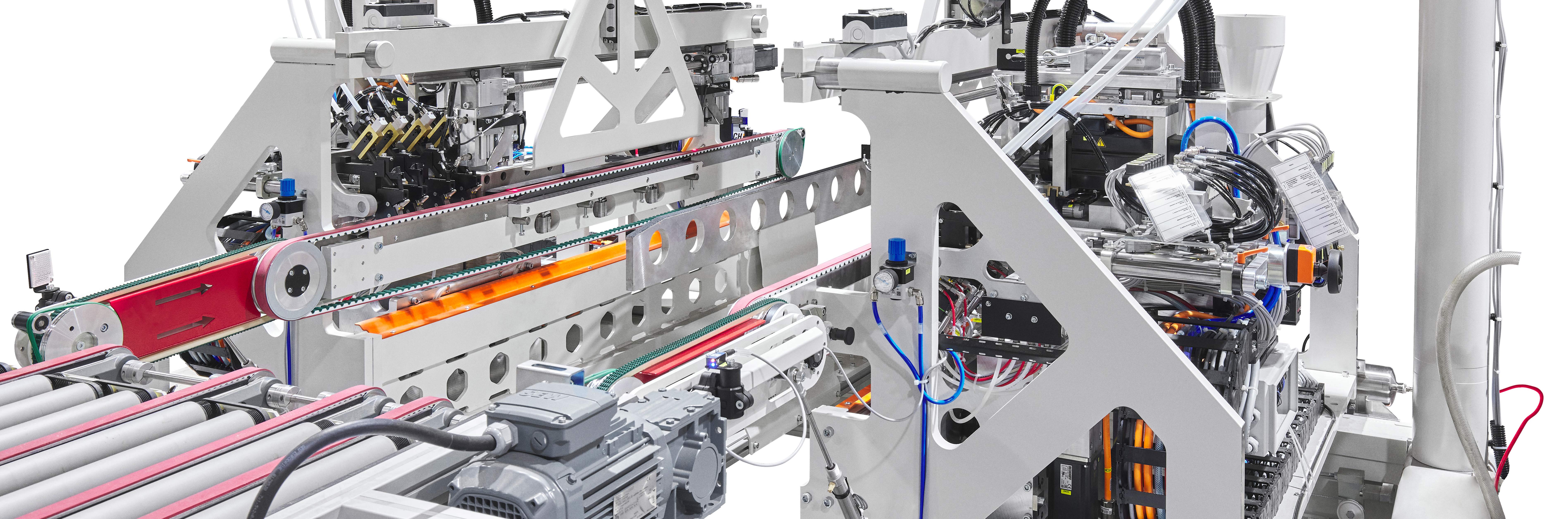

Drilling and dowel insertion machine with point-to-point function for processing cabinet parts. The through-feed drilling machine UNIFLEX is ideally suited for double-sided drilling and doweling for batch size 1 as well as small volume production.
Minimal set-up times due to fast servo positioning axis for width adjustment and operation units. Each workpiece is processed on a point-to-point basis utilizing of NC-control, from fast transport and precise positioning through to efficient drilling and dowel insertion.
Stock dimensions
Stock length: 250 - 1500 mm
Stock width: 70 - 800 mm
Stock thickness: 15 - 40 mm
Doweling station
Dowel diameter: 8 mm
Dowel length: 30-35 mm
- High flexibility and precision
- Fast processing
- Fully automated solution
- Small space

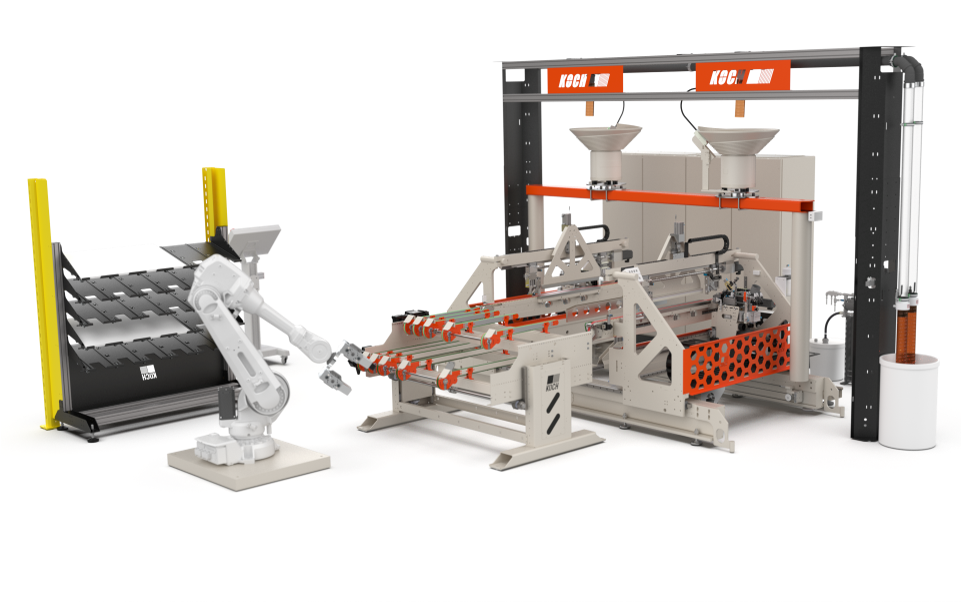

- Robot with gripper system for flexible and unmanned workpiece loading
- Double-deck belt conveyor with lift
- Reversing workpiece transport
- Horizontal drilling and vertical drilling station at the edge
- Dowel insertion station
- Electronic Glue Control (ELC –patent granted)
- “Quick” semiautomatic dowel refilling
Operation without robot feeding
- Optional Production Line Integration (interface is prepared to connect to different higher-level controls)
- Manual loading
