Second-Hand Machines
DL-80

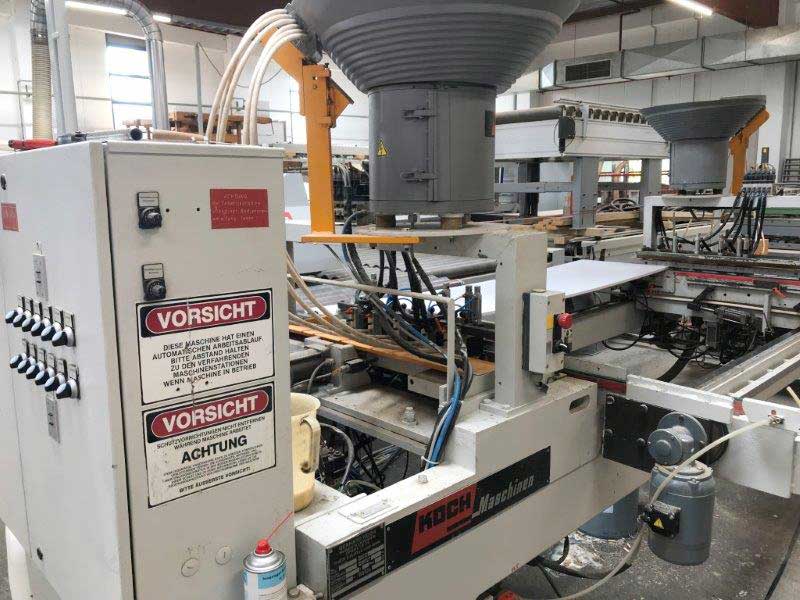

Used through-feed dowel insertion machine for maximum output
Second-hand dowel driving machine for double ended automatic operation. This high capacity machine can work behind through-feed boring machines or can be used as a stand-alone machine as well.
Dowel diameter: 8 x 30 mm
Serial number: 9103/4398
Year of construction: 1991
Stock length: 180 - 2.500 mm
Stock width: 150 - 800 mm
Stock thickness: 12 - 40 mm

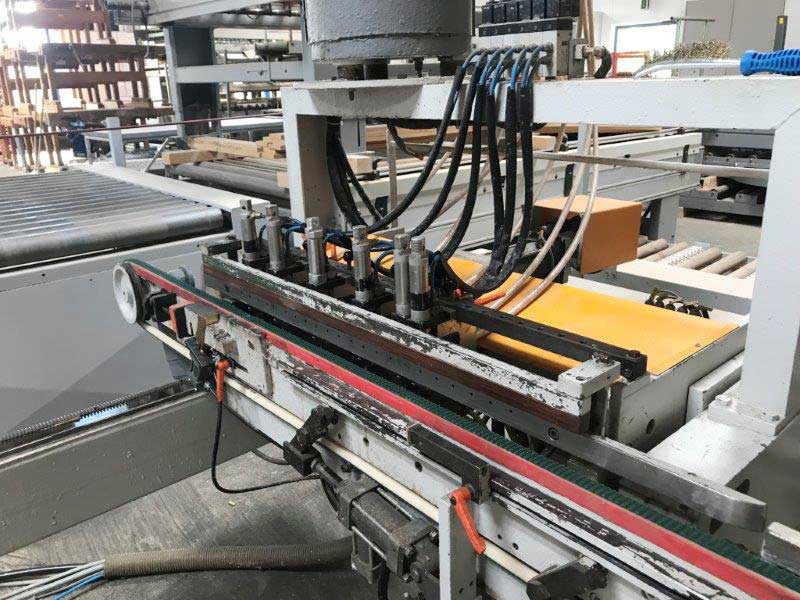

Glue injecting and dowel insertion station
- Each side 6 dowel tools type 34
- Dowel projection 7 - 14 mm
- Dowel center distance min. 32 mm - max. 736 mm
- Glue valves can individually be switched on and off, central glue amount adjustment with digital readout
- Glue pump 1:1
Control
- SPS-control
